Product Details:
Payment & Shipping Terms:
|
| Product: | PYC6I Small Remote Concrete Spraying Machine | Air Comsumption: | 5-15m3/min |
|---|---|---|---|
| Feature: | Long-distance Concrete Spraying | Rev Of Rotor: | 11r/min |
| After-sales Service Provided: | Video Technical Support | ||
| Highlight: | Remote Concrete Spraying Machine,Hydraulic Concrete Spraying Machine,Hydraulic Drive Concrete Spraying Machine |
||

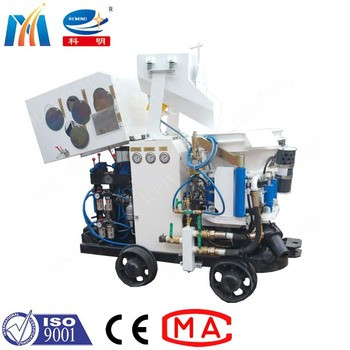

1. PYC6I Small Remote Concrete Spraying Machine is a special equipment for pneumatic conveying of concrete in coal mine construction.
2. Mechanical built-in transfer plate, adjust the size of the material mouth under the hopper, steplessly adjust the amount of concrete spraying, and realize the concrete spraying operation of long-distance transportation.
3. The overturning of the hopper seat and the lifting of the distributor are hydraulically driven, reducing the maintenance workload.
PYC6I Small Remote Concrete Spraying Machine Features:
1. PYC6I Small Remote Concrete Spraying Machine is a special equipment for pneumatic conveying of concrete in coal mine construction.
2. Mechanical built-in transfer plate, adjust the size of the material mouth under the hopper, steplessly adjust the amount of concrete spraying, and realize the concrete spraying operation of long-distance transportation.
3. The overturning of the hopper seat and the lifting of the distributor are hydraulically driven, reducing the maintenance workload.
| Basic parameters | Unit | Parameters |
| Max. capacity | m3/h | 2-6 |
| Max. delivery distance | m | 240 |
| Max aggregate size | mm | 15 |
| Hose ID | mm | 51/57 |
| Pressure | Mpa | ≥0.6 |
| Air consumption | m3/min | 5-15 |
| Feeding height | m | 1.15 |
| REV. of rotor | r/min | 11 |
| Power | kw | 7.5 |
| Voltage | V | 380/660V or 660/1140V |
| Dimension(L*W*H) |
mm |
1800×784×1712 |
| Weight | kg | 1110 |
Achievements:
It has more than 70 national invention patents and utility model patents, and more than 10 identification of relevant departments. It has won 8 awards from coal associations and provincial departments, and won the Henan Provincial Science and Technology Progress Award. In 2014, “Keming” brand won the famous trademark of Henan Province. It has been awarded ISO9001 Quality Management System Certification, OHSAS 18001 Occupational Health and Safety Management System Certification, ISO14001 Environmental Management System Certification and CE Certification.
