| Product: | Reasonable Structure Small Remote Shotcrete Machine | Air Comsumption: | 5-15m3/min |
|---|---|---|---|
| Feature: | Long-distance Concrete Spraying | Rev Of Rotor: | 11r/min |
| After-sales Service Provided: | Video Technical Support | ||
| Highlight: | Reasonable structure Concrete Spraying Machine,Reasonable Structure Concrete Spraying Machine,Reasonable Concrete Spraying Machine |
||

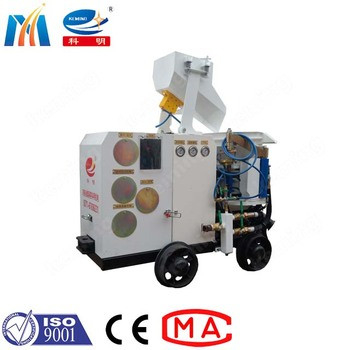

1. Reasonable structure Small Remote Shotcrete Machine is a special equipment for pneumatic conveying of concrete in coal mine construction.
2. The structure of the whole machine is more compact, which is convenient for transfer operations.
3. Automatic addition system of quick-setting agent, which can accurately control the amount of quick-setting agent.
Reasonable structure Small Remote Shotcrete Machine Features:
1. Reasonable structure Small Remote Shotcrete Machine is a special equipment for pneumatic conveying of concrete in coal mine construction.
2. The structure of the whole machine is more compact, which is convenient for transfer operations.
3. Automatic addition system of quick-setting agent, which can accurately control the amount of quick-setting agent.
| Basic parameters | Unit | Parameters |
| Max. capacity | m3/h | 2-6 |
| Max. delivery distance | m | 240 |
| Max aggregate size | mm | 15 |
| Hose ID | mm | 51/57 |
| Pressure | Mpa | ≥0.6 |
| Air consumption | m3/min | 5-15 |
| Feeding height | m | 1.15 |
| REV. of rotor | r/min | 11 |
| Power | kw | 7.5 |
| Voltage | V | 380/660V or 660/1140V |
| Dimension(L*W*H) |
mm |
1800×784×1712 |
| Weight | kg | 1110 |
Company introduction:
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical department of Henan Coal Scientific Research Institute) is a subsidiary of Henan Coal Scientific Research Institute Co., Ltd.It is the first company in China to develop and produce spraying machines. It is one of the national standard-setting unit for the development of spraying industry.
