| Product: | Remote Conveying Gunite Machine | Capacity: | 2-6m3/h |
|---|---|---|---|
| Max. Delivery Distance: | 240m | After-sales Service Provided: | Video Technical Support |
| Highlight: | Small Concrete Spraying Machine,Coal Mine Concrete Spraying Machine |
||

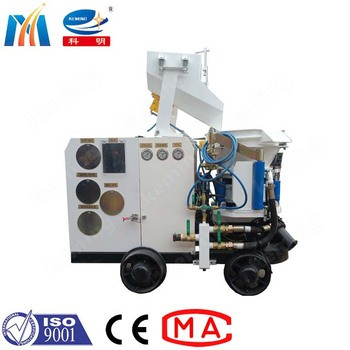

1. PYC6I is a long-distance concrete conveying and spraying equipment for the directional development of small and medium-sized engineering and mining engineering, PYC15I is a special equipment for the directional development of pneumatic conveying of bean gravel in TBM shield construction, this equipment has the function of concrete spraying and conveying at the same time.
2. The overturning of the hopper seat and the lifting of the distributor are hydraulically driven, reducing the maintenance workload.
3. Mechanically hidden turning plate, adjust the size of the hopper discharge opening, the shotcrete volume can be adjusted steplessly from 3 to 5 squares according to the needs, and the accelerator can be added automatically.
Remote Conveying Gunite Machine Features:
1. PYC6I is a long-distance concrete conveying and spraying equipment for the directional development of small and medium-sized engineering and mining engineering, PYC15I is a special equipment for the directional development of pneumatic conveying of bean gravel in TBM shield construction, this equipment has the function of concrete spraying and conveying at the same time.
2. The overturning of the hopper seat and the lifting of the distributor are hydraulically driven, reducing the maintenance workload.
3. Mechanically hidden turning plate, adjust the size of the hopper discharge opening, the shotcrete volume can be adjusted steplessly from 3 to 5 squares according to the needs, and the accelerator can be added automatically.
| Basic parameters | Unit | Parameters |
| Max. capacity | m3/h | 2-6 |
| Max. delivery distance | m | 240 |
| Max aggregate size | mm | 15 |
| Hose ID | mm | 51/57 |
| Pressure | Mpa | ≥0.6 |
| Air consumption | m3/min | 5-15 |
| Feeding height | m | 1.15 |
| REV. of rotor | r/min | 11 |
| Power | kw | 7.5 |
| Voltage | V | 380/660V or 660/1140V |
| Dimension(L*W*H) |
mm |
1800×784×1712 |
| Weight | kg | 1110 |
Application:
Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.
