Product Details:
Payment & Shipping Terms:
|

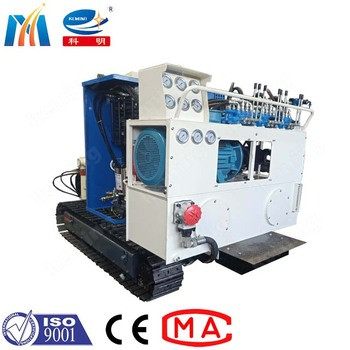

Product: | KEMING Remote Convey Gunite Machine | Dedusting Part Capacity: | 800m³/h |
---|---|---|---|
Braking Method: | Hydraulic | Way Of Walking: | Crawler |
After-sales Service Provided: | Online Video Support | ||
Highlight: | Steplessly Adjusted Spraying Gunite Machine,Mine Use Spraying Gunite Machine |
1. High degree of automation, walking, spraying, dust removal and automatic turning of the hopper base are realized by a set of hydraulic system, which is easy to operate nearby.
2. Injecting the main engine's exhaust dust and the rotor friction plate leakage dust negative pressure into a special dust removal device, new filter material filtering, more than 90% dust reduction compared with traditional jets, reducing environmental pollution, and protecting the physical and mental health of the operators.
3. The friction plate is automatically pressed hydraulically.
raying part |
Capacity |
m3/h |
2~7 |
Delivery distance |
m |
>300 |
|
Max. aggregate size |
mm |
≤20 |
|
Delivery pipe ID. |
mm |
φ51 |
|
Air consumption |
m3/min |
≤8 |
|
Rotor speed |
r/min |
11 |
|
Dedusting part |
Capacity |
m³/h |
800 |
Pressure |
Pa |
2600 |
|
Walking mechanism |
Way of walking |
Crawler |
|
Walking speed |
km/h |
≤1.5 |
|
Gradeability |
|
≤15 |
|
Braking method |
|
Hydraulic |
|
Hydraulic system |
Motor Power |
kw |
18.5 |
Fuel tank capacity |
L |
200 |
|
Cooling method |
|
Air cooling |
KEMING Remote Convey Gunite Machine Application:
1. The friction plate and rotating liner are automatically lubricated.
2. The friction plate is automatically pressed hydraulically.
3. Injecting the main engine's exhaust dust and the rotor friction plate leakage dust negative pressure into a special dust removal device, new filter material filtering, more than 90% dust reduction compared with traditional jets, reducing environmental pollution, and protecting the physical and mental health of the operators.
Company Main Products:
wet/dry shotcrete machine, plastering machine, concrete/shotcrete pump, grouting pump, cement pump,mortar pump, slurry pump, hose pump, cement/concrete mixer, concrete foaming machine etc.
