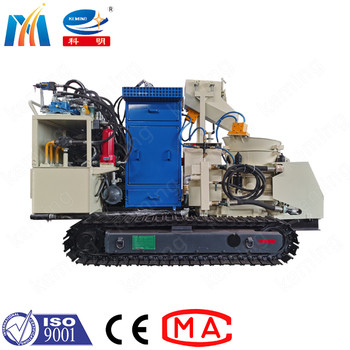

| Product: | PS7IL-J Remote Conveying Gunite Machine | Braking Method: | Hydraulic |
|---|---|---|---|
| Keywords: | Remote Conveying Gunite Machine | After Warranty Service: | Online Video Support |
| Highlight: | Whole Machine Shotcrete Machine,Remote Conveying Shotcrete Machine,Long Shotcrete Machine |
||
1. The hopper seat is automatically turned over, reducing the labor intensity of maintenance workers
2. High degree of automation, walking, spraying, dust removal and automatic turning of the hopper base are realized by a set of hydraulic system, which is easy.
3. The friction plate is pressed hydraulically.
|
Spraying part |
Capacity |
m3/h |
2~7 |
|
Delivery distance |
m |
>300 |
|
|
Max. aggregate size |
mm |
≤20 |
|
|
Delivery pipe ID. |
mm |
φ51 |
|
|
Air consumption |
m3/min |
≤8 |
|
|
Rotor speed |
r/min |
11 |
|
|
Dedusting part |
Capacity |
m³/h |
800 |
|
Pressure |
Pa |
2600 |
|
|
Walking mechanism |
Way of walking |
Crawler |
|
|
Walking speed |
km/h |
≤1.5 |
|
|
Gradeability |
|
≤15 |
|
|
Braking method |
|
Hydraulic |
|
|
Hydraulic system |
Motor Power |
kw |
18.5 |
|
Fuel tank capacity |
L |
200 |
|
|
Cooling method |
|
Air cooling |
PS7IL-J Remote Conveying Gunite Machine Application:
1. Injecting the main engine's exhaust dust and the rotor friction plate leakage dust negative pressure into a special dust removal device, new filter material filtering, more than 90% dust reduction compared with traditional jets, reducing environmental pollution, and protecting the physical and mental health of the operators.
2. High degree of automation, walking, spraying, dust removal and automatic turning of the hopper base are realized by a set of hydraulic system, which is easy
3. According to the on-site wind pressure and air volume, the spray volume is steplessly adjusted.
FAQ
1. Q: Which shotcrete machine should we choose?
A: To recommend the most suitable model, please tell us your project:
- Material:
- Capacity:
- Delivery distance (Horizontal / Vertical):
- Driven type:
3.Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
