| Product: | KEMING KPC Series High Effect Shotcrete Robot | Control Type: | Full Hydraulic Remote Control |
|---|---|---|---|
| COLOR: | Yellow, White Or Customized Color | Maintencance: | Online Video Support |
| Highlight: | Improving Shotcrete Effect Robot,Improving Shotcrete Effect Shotcrete Robot |
||

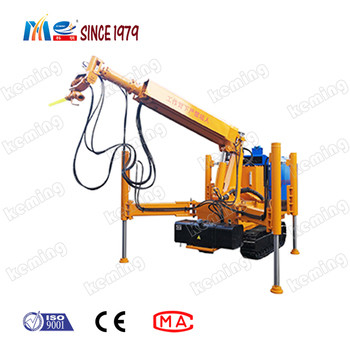

1. KEMING KPC Series Shotcrete Robot Spraying Manipulator is suitable for all kinds of concrete spraying, like dry, wet or wet and dry mixing material.
2. KEMING KPC Series Shotcrete Robot Spraying Manipulator is a good choice equipment for any working project, such as tunnels, coal mines, slope construction and so on.
3. KEMING KPC Series Shotcrete Robot Spraying Manipulator adopts explosion-proof electrical design, which can provide a high level of sacurity of project and can be used in underground coal mine environment.
1. KEMING KPC Series Shotcrete Robot Spraying Manipulator is suitable for all kinds of concrete spraying, like dry, wet or wet and dry mixing material.
2. KEMING KPC Series Shotcrete Robot Spraying Manipulator is a good choice equipment for any working project, such as tunnels, coal mines, slope construction and so on.
3. KEMING KPC Series Shotcrete Robot Spraying Manipulator adopts explosion-proof electrical design, which can provide a high level of sacurity of project and can be used in underground coal mine environment.
| Parameter | Model | KPC-8A | KPC-6A |
| Dimensions in transport mode | 4500*1080*2200mm | 2500*900*1680mm | |
| Weight | 3000kg | 2400kg | |
| Max. length of operation | 8400mm | 7000mm | |
| Outrigger expansion width | 2500mm | 2300mm | |
| Support shotcrete capacity | 0-25m3/h | 0-10m3/h | |
| Boom parameters | Max.spraying height | 8.2m | 6.2m |
| Max. spraying width | 11m | 7m | |
| Hose ID | 51/57/64mm | 51/57/64mm | |
| Arm frame telescopic distance | 2.7m | 2.35m | |
| Boom expansion max. length | 6m | 3.5m | |
| Chassis | Max. gradient of walking | 25% | 20% |
| Ground slope | 2% | 2% | |
| Walking speed | 0.5km/h | 0.6km/h | |
| Ground distance | 390mm | 150mm | |
| Power | Hydraulic system output | 11kw | 7.5kw |
| Voltage | 380-1140v | 380-1140v |
FAQ
1. Q: What is the name of this machine?
A: The name of this machine is KEMING KPC Series Shotcrete Robot Spraying Manipulator.
2. Q: How many spares should we prepare?
A: Referring to your project and the service life of each part, we will put a rough estimate of requested spares according to your project scale -how many cubic meters you will spray.
3. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
