Product: | KPC Robotic Shotcrete Equipment | Type: | Wet Shotcrete Or Dry Shotcrete |
---|---|---|---|
Model: | KPC-6A, KPC-8A | Maintencance: | Online Technic Support |
Highlight: | KEMING KPC Series Shotcrete Robot,Good Performance Shotcrete Robot,Hydraulic Drive Legs Shotcrete Robot |

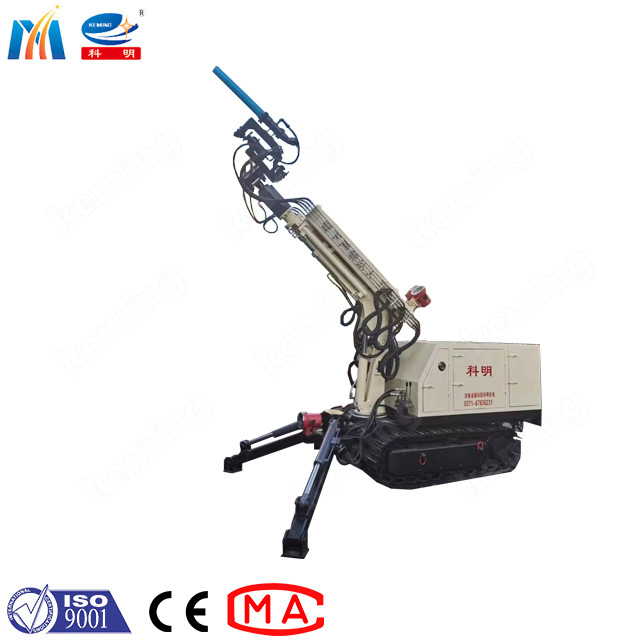

1.KEMING KPC Series Shotcrete Robot has independant hydraulic drive, 4 hydraulic legs, which greatly improving the stability of the equipment during the spray process.
2.independent hydraulic drive, 4 hydraulic legs, greatly improving the stability of the equipment during the spray process.
4.unique protective cover, can protect the robot arm.
Parameter |
KPC-6A |
KPC-8A |
|
Max. operation length |
7000 |
8400 |
|
Outrigger expansion width |
2300 |
2500 |
|
Support shotcrete capacity m3/h |
0-10 |
0-25 |
|
Boom |
Max. spraying H |
6.2m |
8.2m |
Max. spraying W | 7m | 11m | |
Hose id |
51/57/64mm |
||
Arm frame telescopic dis. |
2.35m |
2.7m |
|
Boom expansion max. L |
3.5m |
6m |
|
Chassis |
Max. walk gradient |
20% |
25% |
Walking speed |
0.6km/h |
0.5km/h |
|
Ground dis. |
150mm |
390mm |
|
Power |
Hydraulic system output |
7.5kw |
11kw |
Voltage |
380-1140V |
1.KEMING KPC Series Shotcrete Robot has independant hydraulic drive, 4 hydraulic legs, which greatly improving the stability of the equipment during the spray process.2.independent hydraulic drive, 4 hydraulic legs, greatly improving the stability of the equipment during the spray process.
3.The equipment adopts explosion-proof electrical design and can be used in underground coal mine environment.
4.unique protective cover, can protect the robot arm.
As a comprehensive high-tech enterprise, Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries. It is the first company in China to develop and produce spraying machines. It is one of the national standard-setting unit for the development of spraying industry.
