Product Details:
Payment & Shipping Terms:
|
Product: | KEMING Remote Gunite Machine | Dedusting Part Capacity: | 800m³/h |
---|---|---|---|
Way Of Walking: | Crawler | After-sales Service Provided: | Online Video Support |
Highlight: | Dust Emission Concrete Shotcrete Machine,Concrete Shotcrete Machine With Reducer,Dry Wet Method Concrete Shotcrete Machine |
1. High degree of automation, walking, spraying, dust removal and automatic turning of the hopper base are realized by a set of hydraulic system, which is easy to operate nearby.
2. The whole set of equipment has only one motor, which greatly shortens the wiring and auxiliary time of the motor before and after the spraying operation.
3. The friction plate is automatically pressed hydraulically.
raying part |
Capacity |
m3/h |
2~7 |
Delivery distance |
m |
>300 |
|
Max. aggregate size |
mm |
≤20 |
|
Delivery pipe ID. |
mm |
φ51 |
|
Air consumption |
m3/min |
≤8 |
|
Rotor speed |
r/min |
11 |
|
Dedusting part |
Capacity |
m³/h |
800 |
Pressure |
Pa |
2600 |
|
Walking mechanism |
Way of walking |
Crawler |
|
Walking speed |
km/h |
≤1.5 |
|
Gradeability |
|
≤15 |
|
Braking method |
|
Hydraulic |
|
Hydraulic system |
Motor Power |
kw |
18.5 |
Fuel tank capacity |
L |
200 |
|
Cooling method |
|
Air cooling |

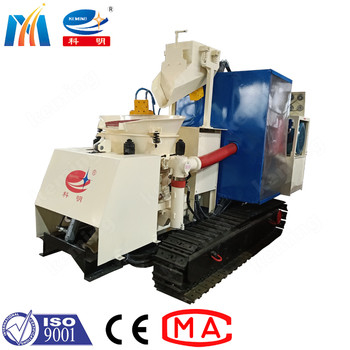

KEMING Remote Gunite Machine Application:
1. The friction plate and rotating liner are automatically lubricated.
2. The hopper seat is automatically turned over, reducing the labor intensity of maintenance workers.
3. Accelerating agent vibration feeding, micro adjustment, to ensure accurate addition and reduce operating personnel.
4. Injecting the main engine's exhaust dust and the rotor friction plate leakage dust negative pressure into a special dust removal device, new filter material filtering, more than 90% dust reduction compared with traditional jets, reducing environmental pollution, and protecting the physical and mental health of the operators.
Company Main Products:
wet/dry shotcrete machine, plastering machine, concrete/shotcrete pump, grouting pump, cement pump,mortar pump, slurry pump, hose pump, cement/concrete mixer, concrete foaming machine etc.
