| Original Country: | China | Drive Mode: | Diesel Motor |
|---|---|---|---|
| Product Name: | KSP Diesel Motor Shotcrete Machine | After Warranty Service: | Online Support |
| After-sales Service Provided: | Video Technical Support | Size: | 2050*950*1180mm |
| Application: | Concrete Spraying Machine | Brand: | HENAN KEMING |
| Highlight: | Diesel Motor Concrete Shotcrete Machine,Wet Spraying Concrete Shotcrete Machine,9m3/H Concrete Spraying Machine |
||

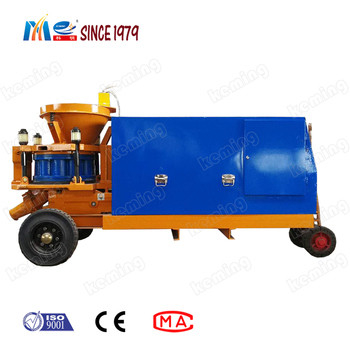

1. KSP diesel motor Shotcrete Machine include Diesel Engine Shotcrete Machine (KSP-5D, KSP-7D, KSP-9D), and Mining Shotcrete Machine.
2. KSP diesel motor shotcrete machine has reasonable structure, stable performance, convenient operation and maintenance, long service life.
3. KSP diesel motor shotcrete machine includes driving device, rotor assembly, sealing system, vibration hopper, air system, spraying system, accelerator conveying system, electric control system.
1. KSP diesel motor shotcrete machine is widely used for tunnel, culvert, subway, hydroelectric works, underground works and mine laneway.
2. Wet shotcrete machine is designed for spraying half wet or wet concrete.
|
Model |
KSP-7 |
KSP-9 |
|
Capacity |
5-7m³/h |
7-9m³/h |
|
Conveying distance |
35m(WET)/120m(DRY) |
30m(WET)/100m(DRY) |
|
Max. aggregate size |
20mm |
|
|
Concrete slump |
8~15cm |
|
|
Conveying Pipe ID. |
57mm |
|
|
Rebound rate |
≤10%(on average ) |
|
|
Air consumption |
9-10m³/min |
10m³/min |
|
Motor power |
7.5kw |
|
|
Max. Pump discharge of accelerator |
35-200L/h |
|
