| Product Name: | KEMING Industrial Sqeezed Hose Pump | Advantage: | Less Wearable Parts |
|---|---|---|---|
| Reducer Type: | Gear Reducer, Cycloidal Reducer | Warranty Service: | Online Technical Service |
| Highlight: | New Design Industrial Hose Pump,2.5 MPa Industrial Hose Pump,Storage Tank Industrial Hose Pump |
||

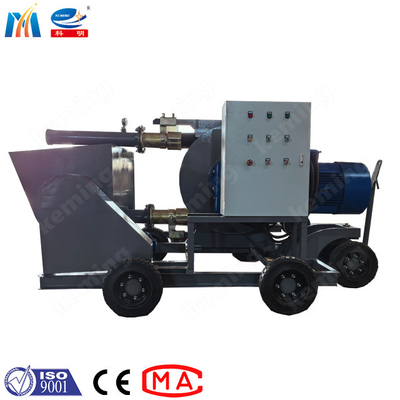

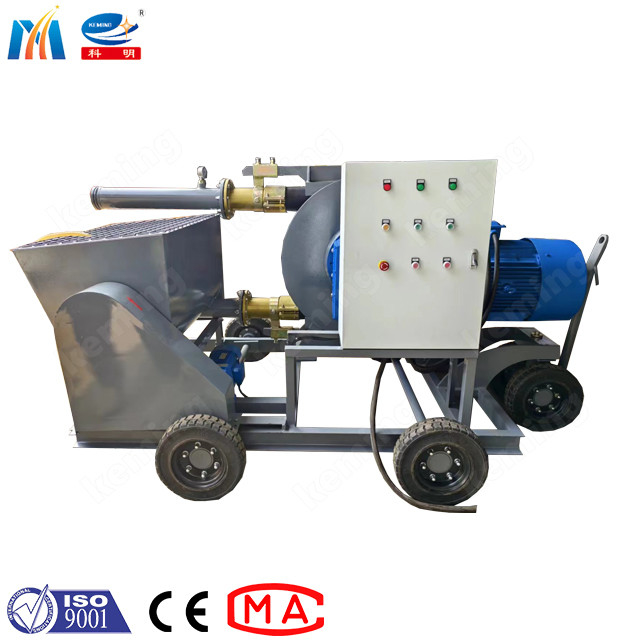

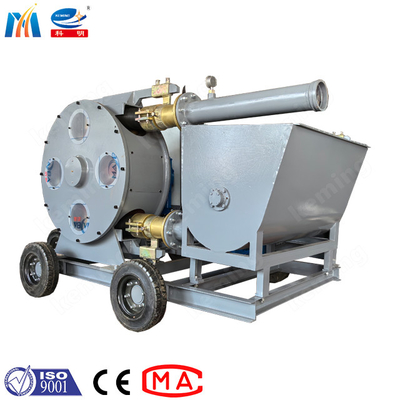

KH100-37 hose pump is a product with improved design based on the advantages of similar foreign machines.
Its features are as follows:
1. Valveless operation, wide flow channel. It can adapt to the pumping of viscous and particle-containing slurries;
2. Constant volume pumping, no backflow, stable flow;
3. Easy to achieve flow regulation, select suitable additional components, and can be used as a metering pump.
4. The pumped slurry only contacts the extrusion hose, and the selection of suitable hose materials can adapt to various slurries.
5. The inlet and outlet can be switched freely. When there is a foreign object blocking the pipe, the blockage can be discharged by reversing;
6. High vacuum degree and strong self-priming ability;
7. Easy to clean, no need to disassemble, the conveying pipeline can be cleaned
8. Simple and easy maintenance, few vulnerable parts (only one extrusion hose);
| Capacity | 45 m3/h |
| Max. pressure | 2.5Mpa |
| Squeeze hose inner diameter | f102mm |
| Pump rotation speed | 51r/min |
| Max. Conveying materials size | 6mm |
| Storage tank volume | 350L |
| Mixing power | 1.5kW |
| Max. Suction stroke | 5m |
Company introduction:
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd.
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. is a subsidiary of Henan Coal Scientific Research Institute Co., Ltd.It is the first company in China to develop and produce shotcrete machines. It is one of the national standards for the development of spraying industry.
Achievements: It has more than 20 national invention patents and utility model patents, and more than 10 identification of relevant departments. It has won 8 awards from coal associations and provincial departments, and won the Henan Provincial Science and Technology Progress Award.In 2014, “ Keming ” brand won the famous trademark of Henan Province. It has been awarded ISO9001 Quality Management System Certification, OHSAS 18001 Occupational Health and Safety Management System Certification, ISO14001 Environmental Management System Certification and CE Certification.
Service: mechanical and electrical products, chemical technology, the development and manufacture of mining products, technical research of energy conservation and environment protection technology, and relative consultation service.
Application:
Our products are mainly applied in water conservancy and hydropower engineering, subway engineering, air-raid shelter construction, municipal construction, environmental greening projects, tunnel and bridge maintenance, slope maintenance, blast-furnace refractories spraying operations, mining concrete spraying operations, etc.
Exhibition:
FAQ:
1. Q: Which pump model should we choose?
A: To recommend the most suitable model, please let us know your requirements and the details of your project, then will give you the professional suggestions soon.
2. Q: What is the vulnerable part? How many spares should we prepare?
A: After long-time running, the rubber piston and cylinder sleeve may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale.
3. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
4. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
5. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
6. Q: What is the lead time?
A: 1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
7. Q: How about the package?
A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.
8. Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
9. Q :How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment;
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
