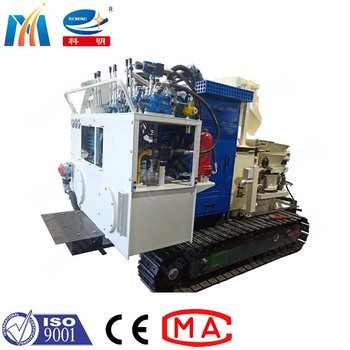

Optimized Key Components KEMING Remote Conveying Gunite Machine with Dust Removing

China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
China Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. certification
I'm Online Chat Now

Optimized Key Components KEMING Remote Conveying Gunite Machine with Dust Removing

Optimized Key Components KEMING Remote Conveying Gunite Machine with Dust Removing
Optimized Key Components KEMING Remote Conveying Gunite Machine with Dust Removing
video play

Large Image :  Optimized Key Components KEMING Remote Conveying Gunite Machine with Dust Removing

Product Details:
Place of Origin: CHINA
Brand Name: KEMING
Certification: CE, MA
Model Number: KCP-6 KCPZ dedusting gunite machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Wooden Packing
Delivery Time: 5~8 Work Days
Payment Terms: T/T, L/C
Supply Ability: 100 Sets/Per Month
Detailed Product Description
Product: KCP-6 KCPZ Dedusting Gunite Machine Dust Around The Machine: ≤10mg/m3
Dedust Rate: More Than 90% After Warranty Service: Online Video Support
Highlight:

KEMING Remote Conveying Gunite Machine

,

Dust Removing Gunite Machine

,

Optimized Key Components Gunite Machine

Optimized Key Components KEMING Remote Conveying Gunite Machine with Dust Removing

KEMING Remote gunite shotcrete machine Information:

1. KCPZ Model dedusting gunite machine obtains the Invention Patent and Utility Model Patent.

2. According to the on-site wind pressure and air volume, the spray volume is steplessly adjusted; the key components are optimized and designed to achieve long-distance spraying operations.

3. The key components are optimized and designed to achieve long-distance spraying operations.

4. The polution of KCPZ Model dedusting gunite machine is less than 90% of dust polution of traditional machine.

KEMING Remote gunite shotcrete machine Technical Parameters:

raying part Capacity m3/h 2~7
Delivery distance m >300
Max. aggregate size mm ≤20
Delivery pipe ID. mm φ51
Air consumption m3/min ≤8
Rotor speed r/min 11
Dedusting part Capacity m³/h 800
Pressure Pa 2600
Walking mechanism Way of walking Crawler
Walking speed km/h ≤1.5
Gradeability   ≤15
Braking method   Hydraulic

Hydraulic system





Motor Power kw 18.5
Fuel tank capacity L 200
Cooling method   Air cooling
Dimension(L*W*H) mm 2650*1300*1800


KEMING Remote gunite shotcrete machine Application:

1. KEMING dedusting gunite machine can be used for dry, semi-wet or wet concrete spray construction.

2. The key components are optimized and designed to achieve long-distance spraying operations.

3. KCPZ dedusting gunite machine is suitable for concrete operation in narrow space.



Optimized Key Components KEMING Remote Conveying Gunite Machine with Dust Removing 0



Company Business Scope:

As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
