Product Details:
Payment & Shipping Terms:
|
| Control System: | Manual/Automatic | Max. Theoretical Vertical Conveying Distance: | 150m |
|---|---|---|---|
| Max. Aggregate Diameter: | 40mm | Pump Valve: | S Valve |
| Max. Theoretical Conveying Capacity: | 60m³/h | Max. Theoretical Horizontal Conveying Distance: | 500m |
| Product Name: | Small Concrete Pump | Weight: | 3000Kg |
| Highlight: | 60m3/h Small Concrete Pump,Construction Small Concrete Pump |
||

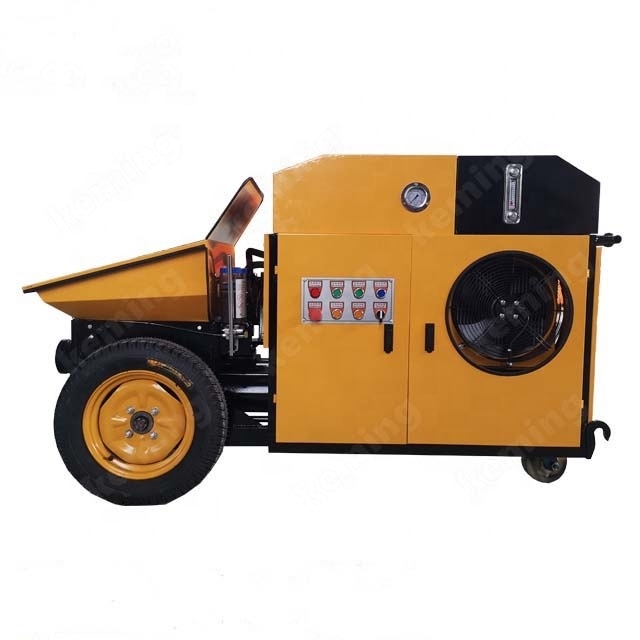

Small Concrete Pump is a versatile piece of equipment used for a wide range of concrete pumping applications. It is widely used in construction, industrial, and agricultural sectors. The product is designed to help contractors quickly and efficiently pump concrete into any area, and its features make it ideal for a variety of applications. The Small Concrete Pump offers a Max. Theoretical Horizontal Conveying Distance of 500m, a Max. Aggregate Diameter of 40mm, and a Delivery Pressure of 8Mpa, as well as a Max. Theoretical Vertical Conveying Distance of 150m. This makes it perfect for Shotcrete pump, Shotcrete pump, and other concrete pumping applications. With its reliable performance, Small Concrete Pump is the perfect solution for any job requiring a reliable and efficient concrete pumping system.
| Name | Value |
|---|---|
| Control System | Manual/Automatic |
| Weight | 3000Kg |
| Power | 176Kw |
| Pump Valve | S Valve |
| Cylinder Diameter | Φ100/200mm |
| Max. Theoretical Vertical Conveying Distance | 150m |
| Delivery Pressure | 8Mpa |
| Dimension | 4200*1450*1800mm |
| Hopper Capacity | 0.45m³ |
| Max. Theoretical Conveying Capacity | 60m³/h |
KEMING KMB mini concrete pump is a mobile concrete pump with CE certification. It is designed for the construction sites with limited space and access. This concrete pump has a maximum horizontal conveying distance of 500 meters, and it can handle aggregate with 40mm diameter. It has a cylinder diameter of either Φ100mm or Φ200mm and it can be operated with either manual or automatic control system. This mini concrete pump is ideal for the construction sites with limited access, as it provides a cost-effective and efficient solution for transferring the concrete. This concrete pump truck can pump concrete to limited spaces, such as high-rise buildings, underground construction, tunnels, and bridges. It is also capable of pumping concrete over long distances.
Small Concrete Pump Packaging and Shipping:
We package and ship small concrete pumps in a variety of ways, depending on the size of the pump and the customer's specific needs. Generally, we use a wooden pallet, shrinkwrap, and cardboard box to protect the pump and ensure it can be safely transported.
We also offer a variety of shipping options, from ground shipping to air freight. We can work with the customer to determine the best shipping option for their needs and budget.
