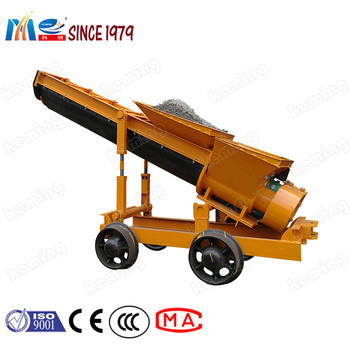

| Product: | Realize Continuous Loading SDL Type Belt Conveyor Machine | Applicable Materials: | Mortar Concrete Cement And Sand |
|---|---|---|---|
| Theory: | Screw Conveyor | After-sales Service: | Supports Through Video |
| Highlight: | Belt Conveyor Grout Mixer Machine,Grout Mixer Machine For Cement,Screw conveyor Grout Mixer Machine |
||
1. Electric motor or diesel engine driven, suitable for different working environment.
2. Compact structure, light weight, rational design, high performance.
Continuous Loading SDL Type Belt Conveyor Machine Application:
1. Conveying solid materials in industrial production.
2. Conveying cement, mortar, concrete etc. in concrete construction.
| Model | Screw diameter (Screw feeder) mm | Belt width (Belt feeder) mm | Rated input power kw | Length m |
| SDL160 | 150-180(length can be customized) | 3(4/5.5) | 2/3 | |
| SDL220 | 200-230(length can be customized) | 5.5(4/7.5) | 2/3/4 | |
| SDL300 | 300-330(length can be customized) | 300(length can be customized) | 4(5.5/7.5/11) | 3/4/5 |
| SDL400 | 400-430(length can be customized) | 400(length can be customized) | 4(5.5/7.5/11) | 3/4/5 |
| SDL600 | 600-630(length can be customized) | 600(length can be customized) | 5.5(7.5/11) | 3/4/5/6 |
| SDL800 | 800-830(length can be customized) | 7.5(11) | 4/5/6/9 | |
| SDL1000 | 1000-1030 | 11(15) | 5/6/9 |
