Product Details:
Payment & Shipping Terms:
|

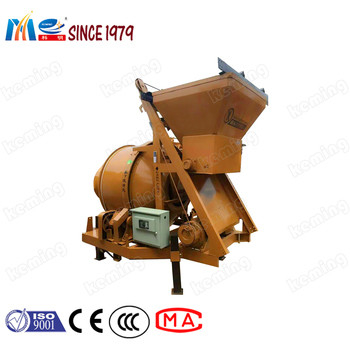

| Product: | Convenient Feeding Mixer KEMING JZC Concrete Mixer | Maximum Aggregate Diameter: | 60-80mm |
|---|---|---|---|
| Discharging Height: | 800mm | After-sales Service: | Technical Video Supports |
| Highlight: | Feeding Concrete Grout Mixer Machine,KEMING JZC Concrete Grout Mixer Machine,Concrete Grout Mixer with Two Wheels |
||
1. The series of mixers includes fove main models: JZC300, 350,400, 500, and 750. among which JZC750 is a fixed type.
2. In addition to being used as a single unit, it can be combined with a batching unit to synthesize a simple mixing station.
Convenient Feeding Mixer KEMING JZC Concrete Mixer Feature:
1. JZC concrete mixer belongs to the self-falling double cone reversal discharge mobile concrete mixer, which can mix plastic and semi-dry concrete.
2. The mixing drum of JZC concrete mixer rotates forward for mixing and reverses for discharge.
3. Each tank can mix 300 to 750 liters of concrete (referring to the volume of concrete after tamping), and can produce 8 to 75 cubic meters per hours.
|
Model |
JZC300 | JZC350 | JZC400 | JZC500 |
JZC750 |
|
Charging volume (L) |
480 | 560 | 640 | 800 |
1200 |
|
Discharging capacity (L) |
300 | 350 | 400 | 500 |
750 |
|
Productivity (m3/h) |
8-12 | 10-14 | 12-16 | 18-20 |
25-30 |
|
Rev of drum (r/min) |
17 | 14 | 14 | 13 | 12 |
|
Max. size of aggregate (mm) |
60 | 60 | 60 | 80 |
80 |
|
Discharge height(mm) |
1250 | 1250 | 1250 | 1500 | 1800 |
|
Stirring motor(kW) |
4 | 5.5 | 5.5 | 7.5 | 11 |
|
Lifting motor(kW) |
/ | /4.5 | 4.5 | 5.5 | 7.5 |
|
Water pump motor (kw) |
0.55 | 0.55 | 0.75 | 0.75 |
1.1 |
|
Tire size |
6.00-16 | 6.00-16 | 6.00-16 | 7.50-16 | |
|
Outline dimension L*B*H(m) |
2.3*2*2.8 | 2.8*2.2*2.8 | 3*2.3*2.9 | 3.3*2.5*3.7 | 3.8*2.1*3.8 |
|
Machine Weight (kg) |
1300 | 1400 | 1400 | 1800 |
2500 |
