Product Details:
Payment & Shipping Terms:
|
| Product: | JZC Concrete Mixer With Model From 300L To 750L | Drum Volume: | 480L-1200L |
|---|---|---|---|
| Power Type: | Electric Motor /diesel Engine | After-sales Service: | Technical Supports |
| Highlight: | JZC Concrete Grout Mixer Machine,750L Concrete Grout Mixer Machine,Concrete Grout Mixer Machine 300L |
||

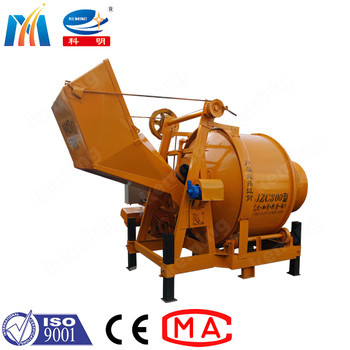

1. The mixing drum of JZC Concrete Mixer with Model from 300L to 750L rotates forward for mixing and reverses for discharge.
2. JZC concrete mixer can mix plastic and semi-dry concrete.
JZC Concrete Mixer with Model from 300L to 750L Feature:
1. The series of mixers includes fove main models: JZC300, 350,400, 500, and 750. among which JZC750 is a fixed type.
2. In addition to being used as a single unit, it can be combined with a batching unit to synthesize a simple mixing station.
3. JZC concrete mixer is suitable for general construction sites, roads, bridge peojects and small and medium-site concrete component factories.
|
Model |
JZC300 | JZC350 | JZC400 | JZC500 |
JZC750 |
|
Charging volume (L) |
480 | 560 | 640 | 800 |
1200 |
|
Discharging capacity (L) |
300 | 350 | 400 | 500 |
750 |
|
Productivity (m3/h) |
8-12 | 10-14 | 12-16 | 18-20 |
25-30 |
|
Rev of drum (r/min) |
17 | 14 | 14 | 13 | 12 |
|
Max. size of aggregate (mm) |
60 | 60 | 60 | 80 |
80 |
|
Discharge height(mm) |
1250 | 1250 | 1250 | 1500 | 1800 |
|
Stirring motor(kW) |
4 | 5.5 | 5.5 | 7.5 | 11 |
|
Lifting motor(kW) |
/ | /4.5 | 4.5 | 5.5 | 7.5 |
|
Water pump motor (kw) |
0.55 | 0.55 | 0.75 | 0.75 |
1.1 |
|
Tire size |
6.00-16 | 6.00-16 | 6.00-16 | 7.50-16 | |
|
Outline dimension L*B*H(m) |
2.3*2*2.8 | 2.8*2.2*2.8 | 3*2.3*2.9 | 3.3*2.5*3.7 | 3.8*2.1*3.8 |
|
Machine Weight (kg) |
1300 | 1400 | 1400 | 1800 |
2500 |
