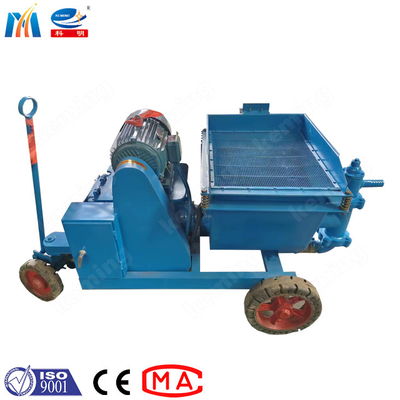

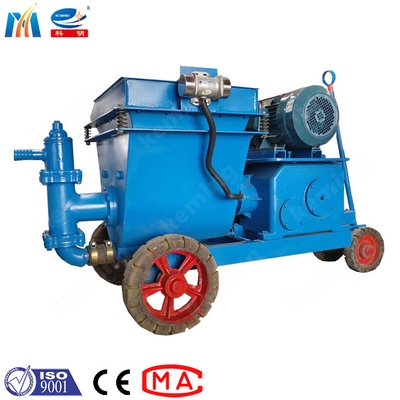

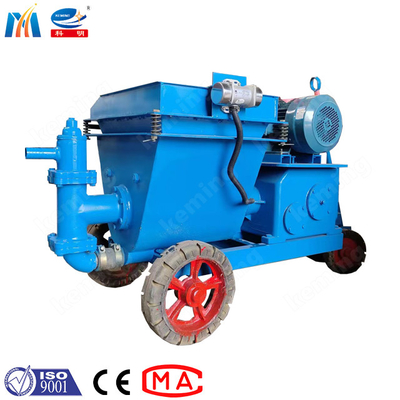

380 V Piston Mortar Pump Long Distance Mortar Plastering Machine For Construction
Introduction:
KZW Multi-functional mortar spraying machine is a double cylinder four-speed plunger type equipment,it is based on years of experience and some advanced foreign technology.
It is more than the life of various screw type spraying equipment used in the market. To be long, the speed is faster than the similar machine.
Stucco spraying machine is a good help for you to transport materials and plaster. When you stop transporting, spraying and coordinating homework, you can greatly save construction time and rest, and improve effectiveness. The average efficiency of mortar spraying machine construction is about 4 times that of manual construction.
Other mortar spraying machines have good operation performance, high reliability during application, less ash on the ground, average cloth during spraying, high adhesion, and not easy to fall off. Can greatly improve the effectiveness of rest and reduce your labor costs.
Specification:
| technical parameter |
high speed 1 |
high speed2 |
high speed3 |
high speed4 |
| maximum conveying capacity |
6 m3/h |
4m3/h |
3m3/h |
2m3/h |
| horizontal conveying distance |
150m |
100m |
80m |
80m |
| vertical conveying distance |
60m |
40m |
30m |
30m |
| maximum mortar ratio |
1:3 |
| displacement of air compressor |
0.6 m3/min |
| air compressor power |
3 kw |
| total weight |
500 kg |
| outline size |
2000x850x950mm |
| main engine power |
11 kw |
Certification:
Company Information:
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. is a subsidiary of Henan Coal Scientific Research Institute Co., Ltd.It is the first company in China to develop and produce shotcrete machines. It is one of the national standards for the development of spraying industry.
Achievements: It has more than 50 national invention patents and utility model patents, and more than 10 identification of relevant departments. It has won 8 awards from coal associations and provincial departments, and won the Henan Provincial Science and Technology Progress Award.In 2014, “Keming” brand won the famous trademark of Henan Province. It has been awarded ISO9001 Quality Management System Certification, OHSAS 18001 Occupational Health and Safety Management System Certification, ISO14001 Environmental Management System Certification and CE Certification.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
Cooperate Culture:
Enterprise Spirit: Devotion, responsibility, innovation, excellence
Service Concept: Serve consumers and satisfy consumers
Business Philosophy: Cultivate excellent talent, invent superior product, offer perfect service
Enterprise Vision: Lead the machinery manufacturing industry, be an outstanding listed company
Corporate responsibility:
Be responsible for the society, operate lawfully, contribute to the society
Be responsible for the shareholder, increase the assets value, stabilize the returns
Be responsible for the customer, service-oriented, integrity-based
Be responsible for the staff, make career plan, live and work in peace
Exhibition:
Bauma Shanghai 2018
FAQ:
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment； L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
