Product Details:
Payment & Shipping Terms:
|
| Type: | Rubber Material | Warranty: | 1 Year |
|---|---|---|---|
| After-sales Service Provided: | Online Support | Condition: | New |
| Weight: | Vary With The Width And Length | Dimension(l*w*h): | Vary With The Width And Length |
| Color: | Grey | Name: | Concrete Spraying Tube |
| Highlight: | Concrete Spraying Shotcrete Hose,Corrosive Fluids Shotcrete Hose,Sensitive Fluids Shotcrete Hose |
||

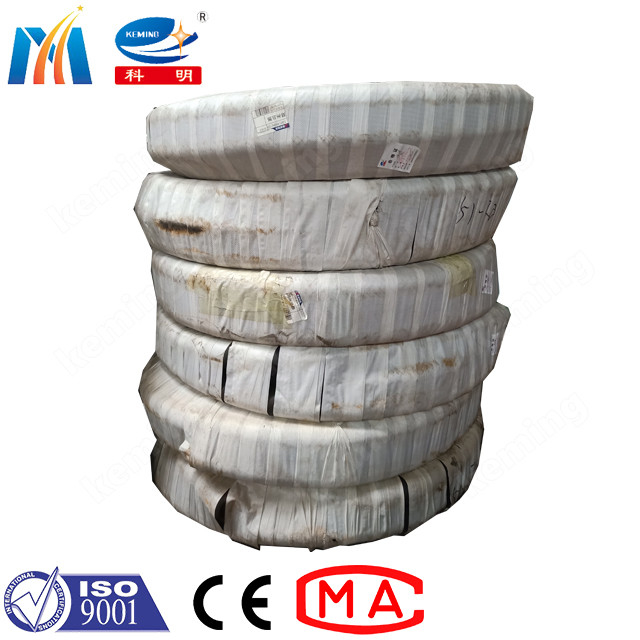

Durable Concrete Spraying Tube Shotcrete Hose For Concrete Shotcrete Project
Introduction:
Industrial hose is mainly used as a hose for soft connection of various equipment in various industries.
Industrial hose is different from hard pipes, industrial hoses also have the characteristics of excellent bendability.
Compared with civilian hoses, the industrial operating environment is more complicated and harsher, and the equipment has more stringent requirements for the conveying pipe. Therefore, industrial hoses have strict specifications and requirements from design and material selection to production, transportation and even final storage have strict standard.
Industrial hoses have a wider range of sizes, a wide range of pressure and temperature, and higher chemical resistance.
Features:
suitable for corrosive, abrasive, sensitive fluids, high viscosity & density fluids
Hose ID:
10mm, 15mm, 25mm, 32mm, 38mm, 50mm,60mm, 65mm, 76mm, 100mm, 130mm, 150mm (Customized Hose)
Specification:
| type | hose ID(mm) | hose OD(mm) | length (mm) | durable presure(MPa) |
| KRG100 | 102 | 148 | 2500 | |
| KRG90 | 89 | 135 | 2200 | |
| KRG75 | 76 | 116 | 1900 | 0.8 |
| KRG65 | 65 | 100 | 1750 | 1.0 |
| KRG60 | 59 | 90 | 1570 | |
| KRG50 | 51 | 84 | 1360 | 1.0 |
| KRG40 | 38 | 66 | 1150 | 1.0 |
| KRG32 | 32 | 60 | 1030 | 1.0 |
| KRG25 | 25 | 49±1 | 900 | |
| KRG20 | 20 | 42±1 | 720 | |
| KRG16 | 16 | 36 | 715 | |
| KRG10 | 10 | 24 | 520 |
Certification:
In 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.
In 2018, our company was awarded ISO9001 Quality Management System Certification, OHSAS 18001 Occupational Health and Safety Management System Certification, ISO14001 Environmental Management System Certification and CE Certification.
Why choose us:
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
Exhibition:
Bauma Shanghai 2018
FAQ:
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment; L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery. 4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or call our 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
